JOY 100 T

JOY 100T is made to order for sailboats and motorboats up to 15 meters where deck space is limited. With vertical motor placement, it fits tight spots like the gunwale. Fill out the form to request a quote—we’ll help you configure your JOY.

Delivery

within 3-4 weeks

Manufacturing & Fulfillment

Not in stock

2-3 weeks to assemble

Product Details

JOY 100T is a made-to-order version of our best-selling JOY 100, designed for sailboats and motorboats between 12 and 15 meters (40–45 ft) where space is tight or a vertical motor layout is required.

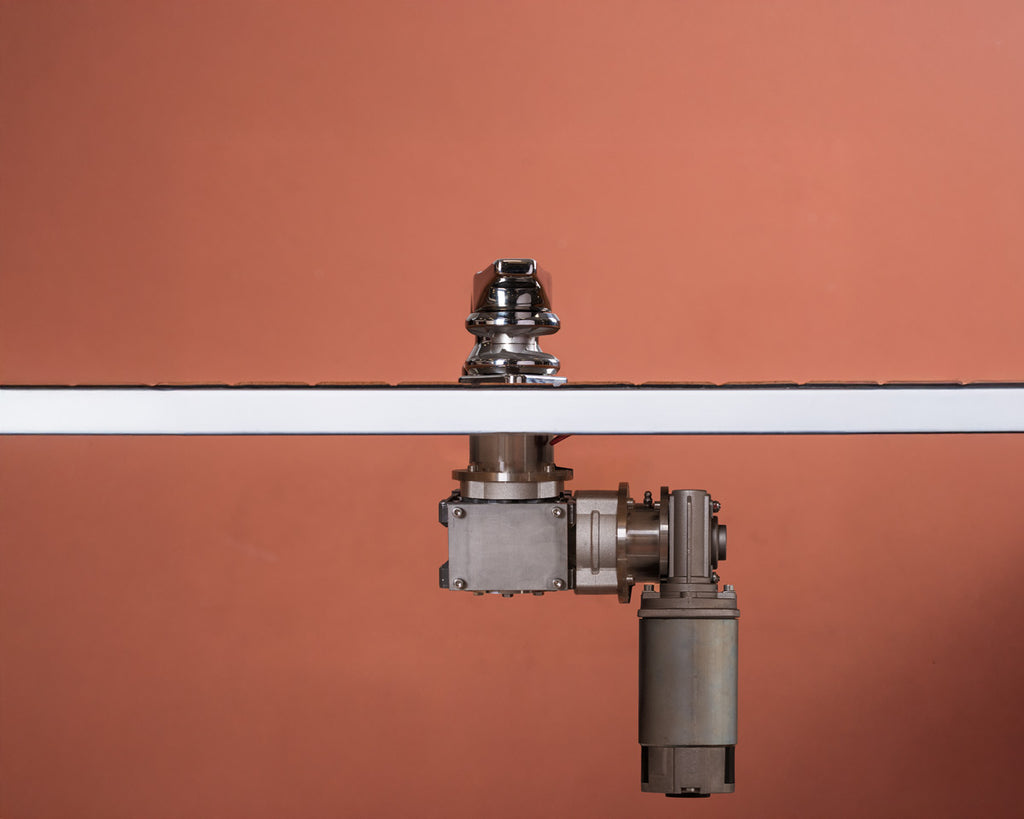

Thanks to its vertical motor placement, JOY 100T is ideal for installations on the gunwale or where deck clearance below is limited.

Like all JOY units, it’s built in AISI 316L stainless steel and tested for durability in real marine environments. It handles mooring lines from 22 to 30 mm and is available in both 12V and 24V. The motor and gearbox are positioned vertically below deck, maintaining full pulling power in a more compact footprint.

JOY 100T is built to order, with several weeks needed for manufacturing and assembly. This ensures a perfect fit with your boat’s layout and electrical system.

Each unit comes with a standard single footswitch, and you can upgrade to a premium single footswitch or add the premium double footswitch with electronic control box for full bidirectional control—particularly useful in constrained docking scenarios.

JOY 100T cannot be purchased directly.
To proceed, fill in the enquiry form and we’ll be in touch to define the best setup and provide a custom quote.
When your space is limited but expectations are high, JOY 100T delivers.

Weight:

11.5 Kg

Suggested Vessel Length:

40–45 ft

Suggested Vessel Weight:

15–20 t

Power:

230 W

Rope Ø:

22.0–30.0 mm

Rated Load Current:

12.5 A (12V) | 25 A (24V)

Maximum Current Draw:

40 A (12V) | 40 A (24V)

Duty Cycle:

S2 5 min

IP Rating (Motor):

IP44

Maximum Rope Speed:

6,5 M/Min

Load In Work On Gearbox:

1100 N / 110 kg (12V) | 1078 N / 110 kg (24V)

GearBox Oil:

ISO 150 PAO

Insulation:

F

Designed with Mechanical Precision

The Footswitch

Standard Single Switch

We include a straightforward, non-branded footswitch with every JOY, so you can get up and running in minutes—no extra parts, no delays. Its lightweight plastic build handles sun and spray well for early use, making it ideal for initial setup, sea trials, or occasional weekend cruising.

Premium Single Switch

Delivered with its dedicated control box. Crafted from solid AISI 316 stainless steel with electronics fully potted to IP67, this footswitch will withstand corrosion, pitting, or moisture damage. One press powers JOY up or down (based on wiring), while the pre-terminated cable ensures a fast, flawless install.

Premium Double Switch

Delivered with its control box. All the toughness of the single version, doubled for two-way control. Separate UP and DOWN pads let you fine-tune JOY in either direction, reliably driving any DC motor in CW or CCW. The sealed stainless housing shrugs off salt, UV and heavy boots year after year, with nothing to rust and no exposed wiring.

FAQ

JOY is the world's first motorized self-tailing cleat, with capstan integrated, that
revolutionizes docking. With a simple foot touch, it automatically takes up
slack, tensions your mooring line, and locks it securely. No more struggling
with heavy lines, no more back strain, no more needing crew help. It's like
having an automated docking assistant built into your boat.

JOY is designed for straightforward installation on most vessels 30+ feet. It comes in
horizontal and vertical motor configurations to fit your deck layout. Most
professional installations take less than 2 hours with our detailed guides and
templates. The system connects to your boat's 12V or 24V electrical system -
simpler than installing a windlass. We provide complete installation support
and can recommend certified installers in your area.

Absolutely. JOY is built like a tank with AISI 316L marine-grade stainless steel - the same
material used in premium yacht hardware. All electronics are fully sealed
against saltwater, and the motorized system is designed for thousands of
docking cycles. Our first units installed 7 years ago are still operating
perfectly. It's engineered to outlast your boat.

Safety First: Eliminates injury risk from heavy line handling and awkward docking
positions
Solo Sailing: Dock confidently single-handed - no crew needed
Effortless Operation: One foot touch does everything automatically
Stress-Free Docking: No more shouting at crew or struggling in tight marinas
Premium Value: Adds luxury automation that impresses guests and increases boat value
Easy to use: the ease of use does not require expert sailor in the maneuver

JOY is extremely power-efficient. Each docking operation uses minimal battery power -
equivalent to running a small LED light for a few minutes. The system only
draws power during the brief moments of line tensioning and locking. You can
dock dozens of times on a single battery charge without any concern.

Yes! JOY includes a manual override feature, so you can always operate it like a
traditional cleat if needed. The motorized system doesn't interfere with manual
operation - you get the best of both worlds. This redundancy ensures you're
never stuck without a functioning cleat.

Feel free to contact us with your boat configuration.

JOY is engineered for vessels 30–150 feet, with models tailored to specific loads:

JOY 100 kg – Perfect for boats 30–50 ft
JOY 300 kg – Ideal for yachts 50–70 ft
JOY 400 kg – Designed for vessels 70–90 ft
JOY 500 kg – Built for large yachts 90–120 ft

Each model is precisely engineered to handle the mooring loads of its size category safely and reliably.

JOY eliminates the physical strain and injury risks of docking, enabling confident solo operation and adding premium automation that increases your boat's value.

It’s especially valuable if you’re an older sailor, have physical limitations, often sail alone, or simply want stress-free docking.

JOY won the prestigious DAME Award 2021 and is trusted by premium yacht builders including Nimbus, Solaris, Ferretti, Hanse, and Pardo.

This is more than a purchase—it’s an investment in safer, more enjoyable boating for years to come.
